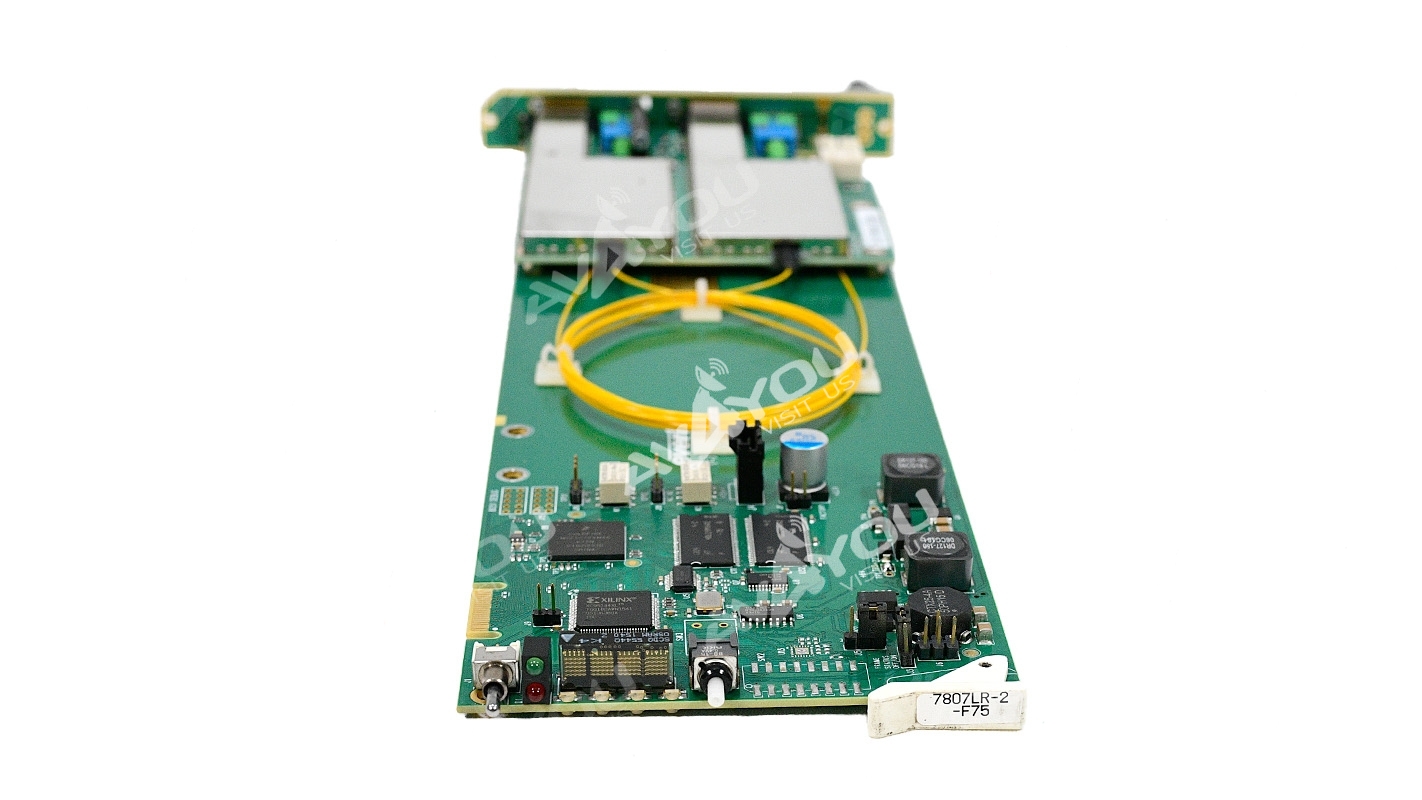

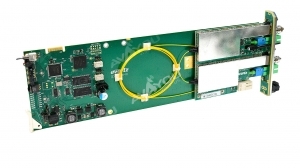

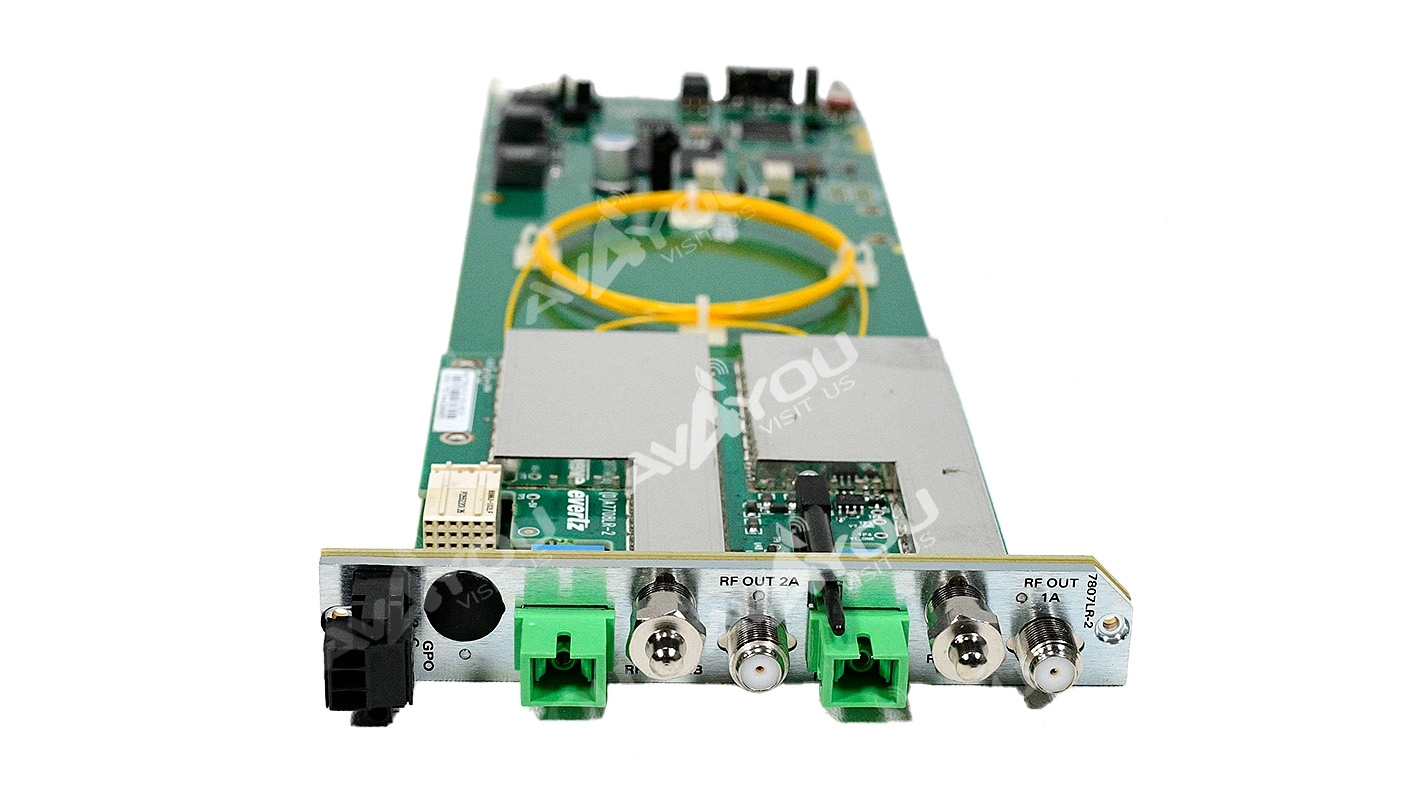

For sale is ONE (1) used 7807LR-2-F75 dual fiber optic receiver card in very good condition. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped. If you are looking for any other Evertz modular cards - we probably have them. Thousands of cards available. Check out our inventory.
The 7807LR-2 and 7807LR-2-H are dual fiber optic receivers for RF signals in the extended L-Band or wider frequency range. They accept two fiber optic inputs from a companion transmitter(s) and provide two pairs of electrical outputs. With two optical receivers per single-slot card, the 7807LR-2 and 7807LR-2-H provide a high density economical solution.

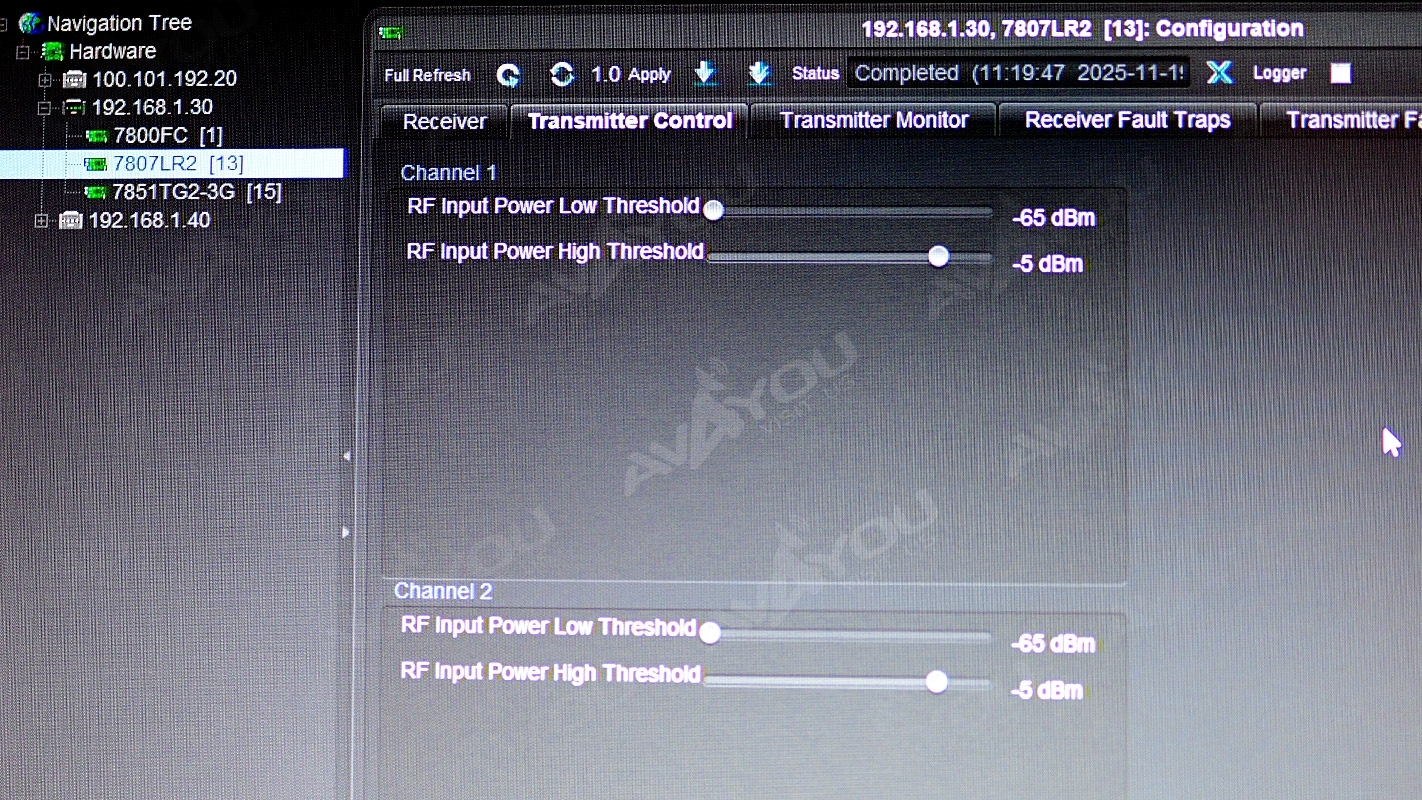

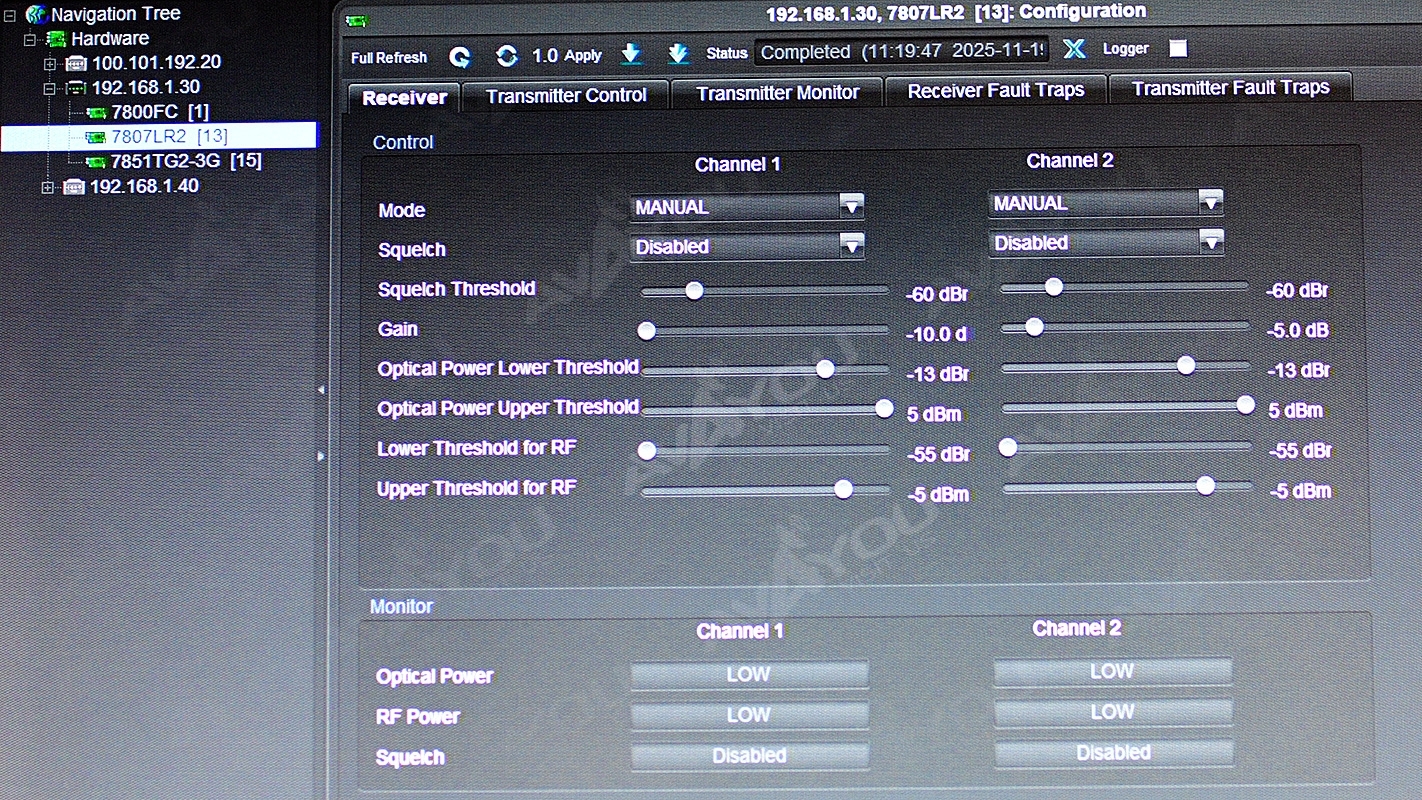

Individual monitoring and control is provided for each signal path. Gain may be adjusted manually in 0.5dB increments or managed automatically via AGC or IGC modes. SmartMON capability decodes and displays incoming information from the paired SmartMON enabled companion transmitter. Two versions of the card are available, including the 7807LR-2 which has standard-sensitivity receivers, and the 7807LR-2-H which utilizes high-sensitivity receivers for medium/long-haul applications.
