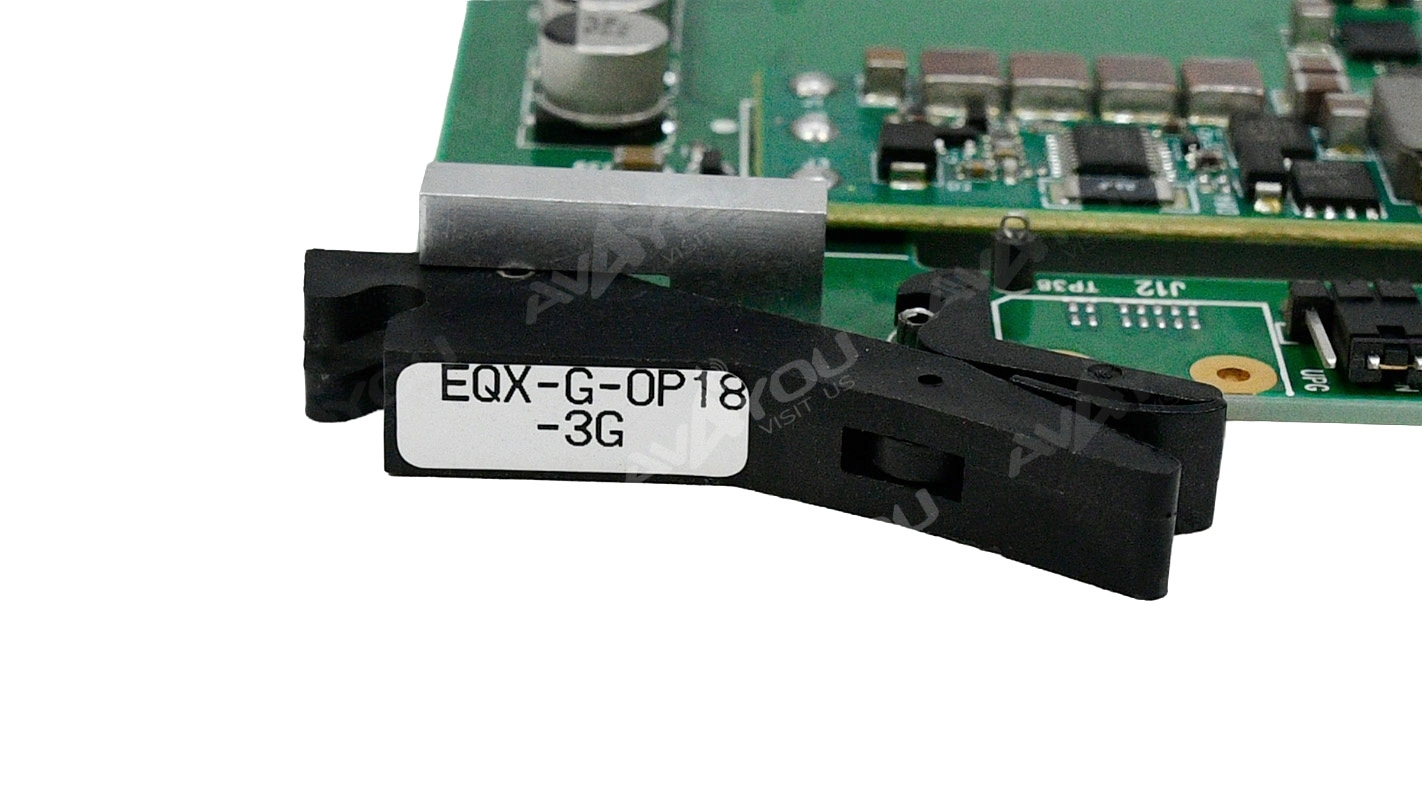

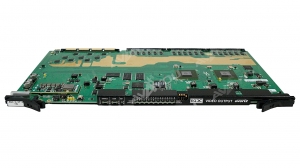

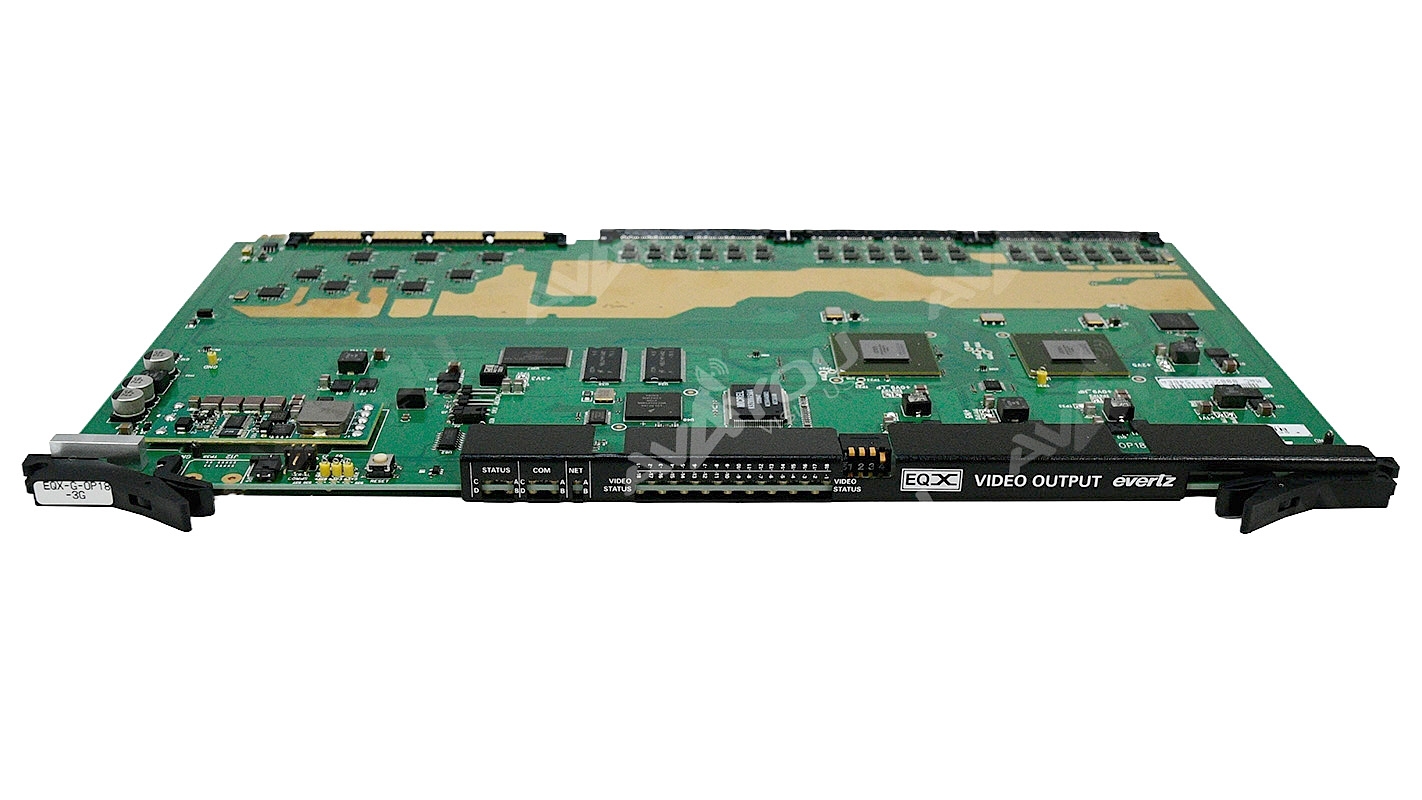

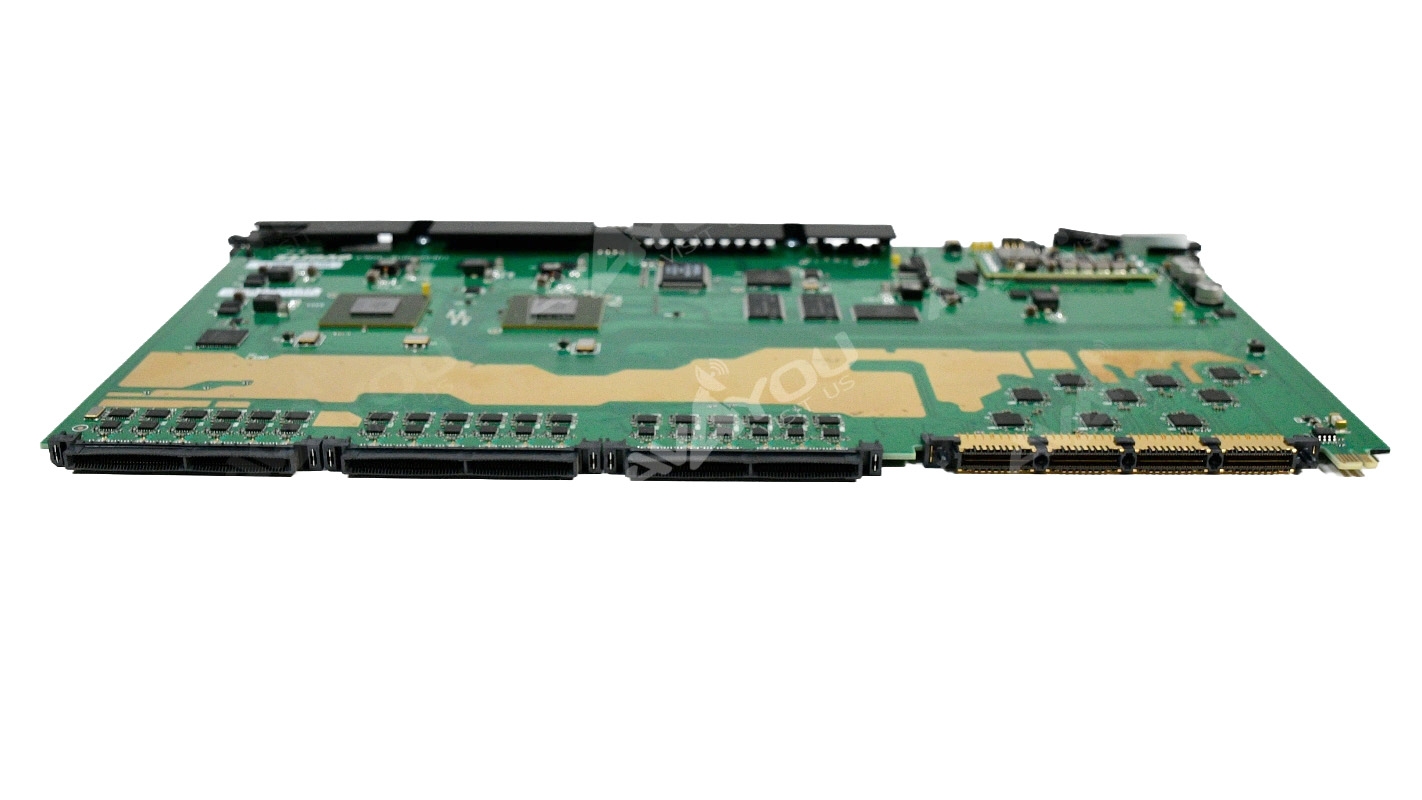

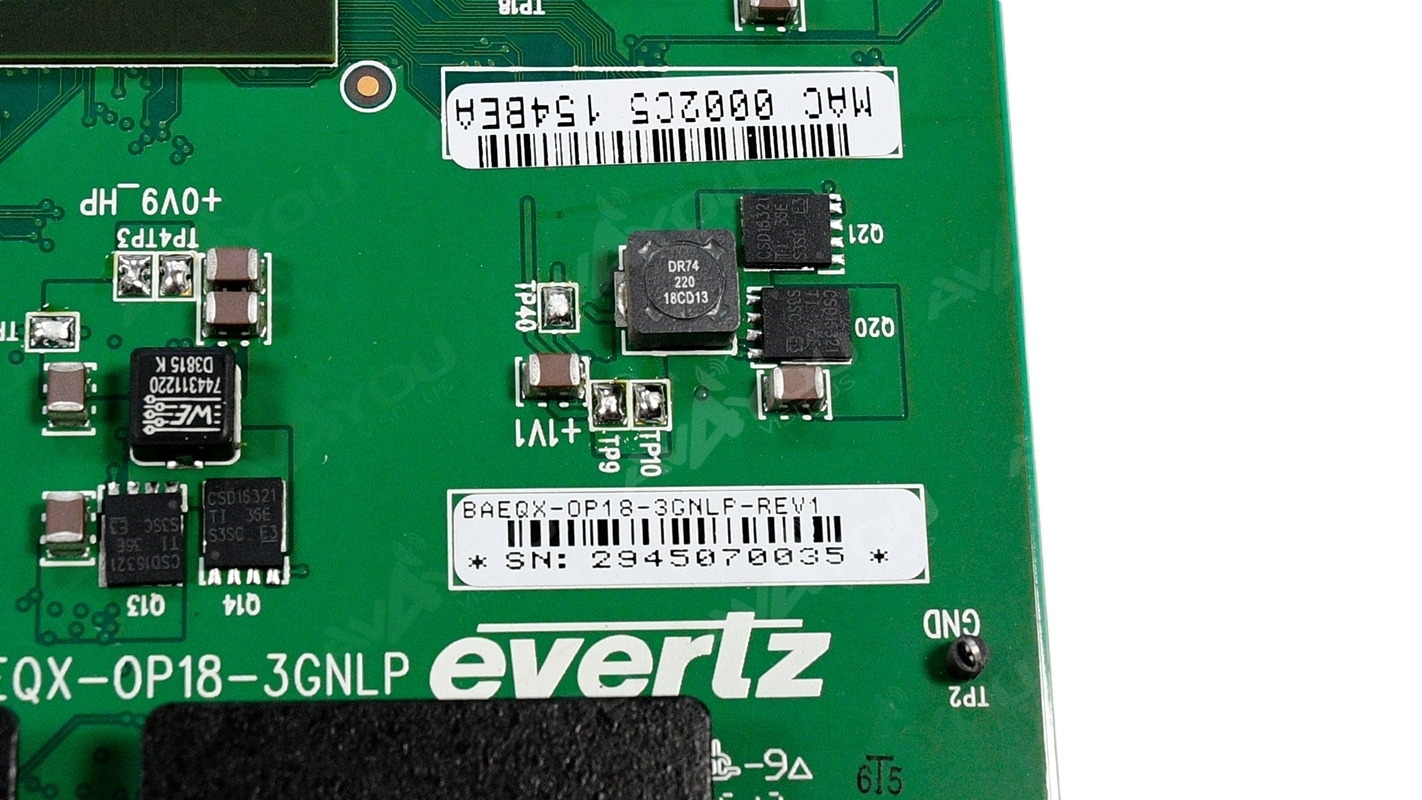

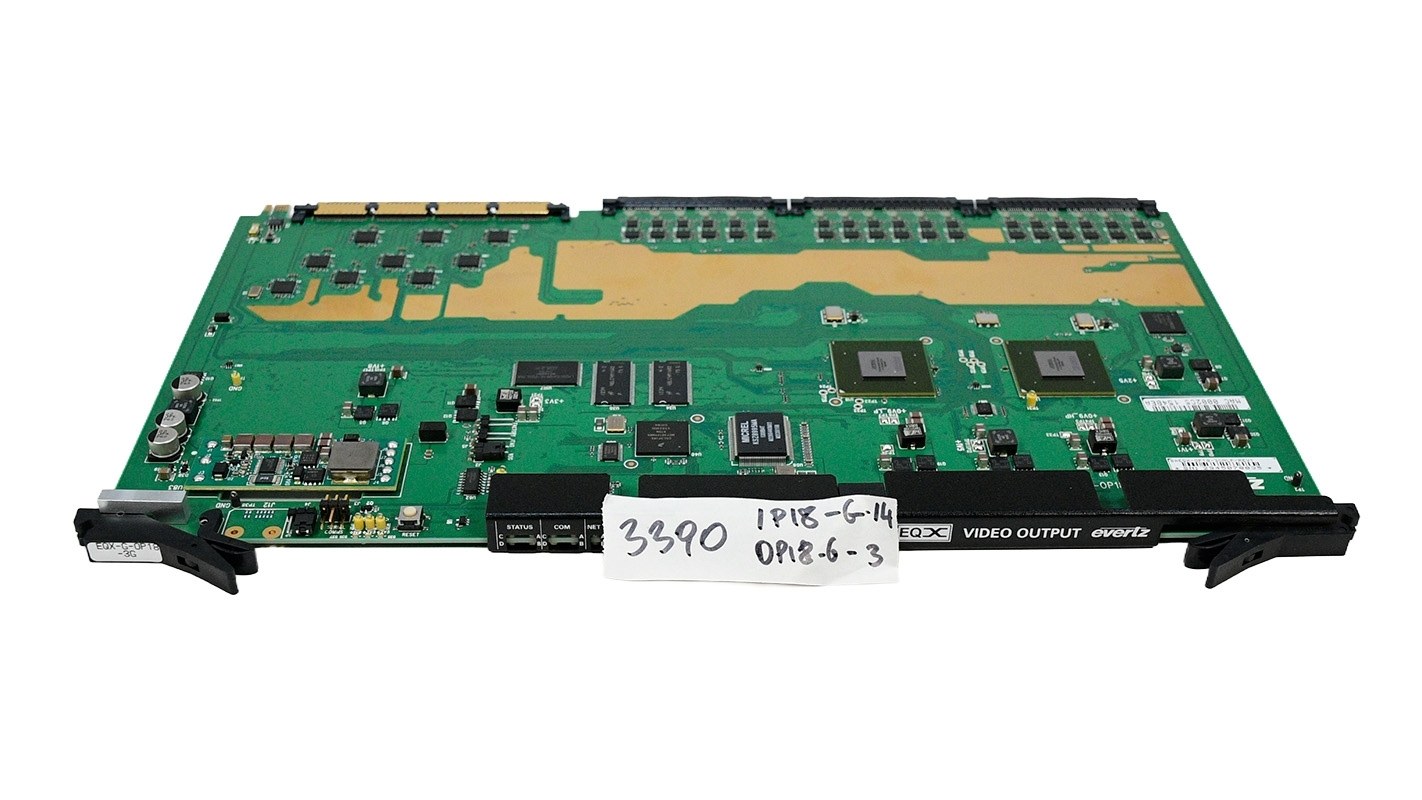

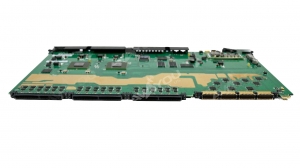

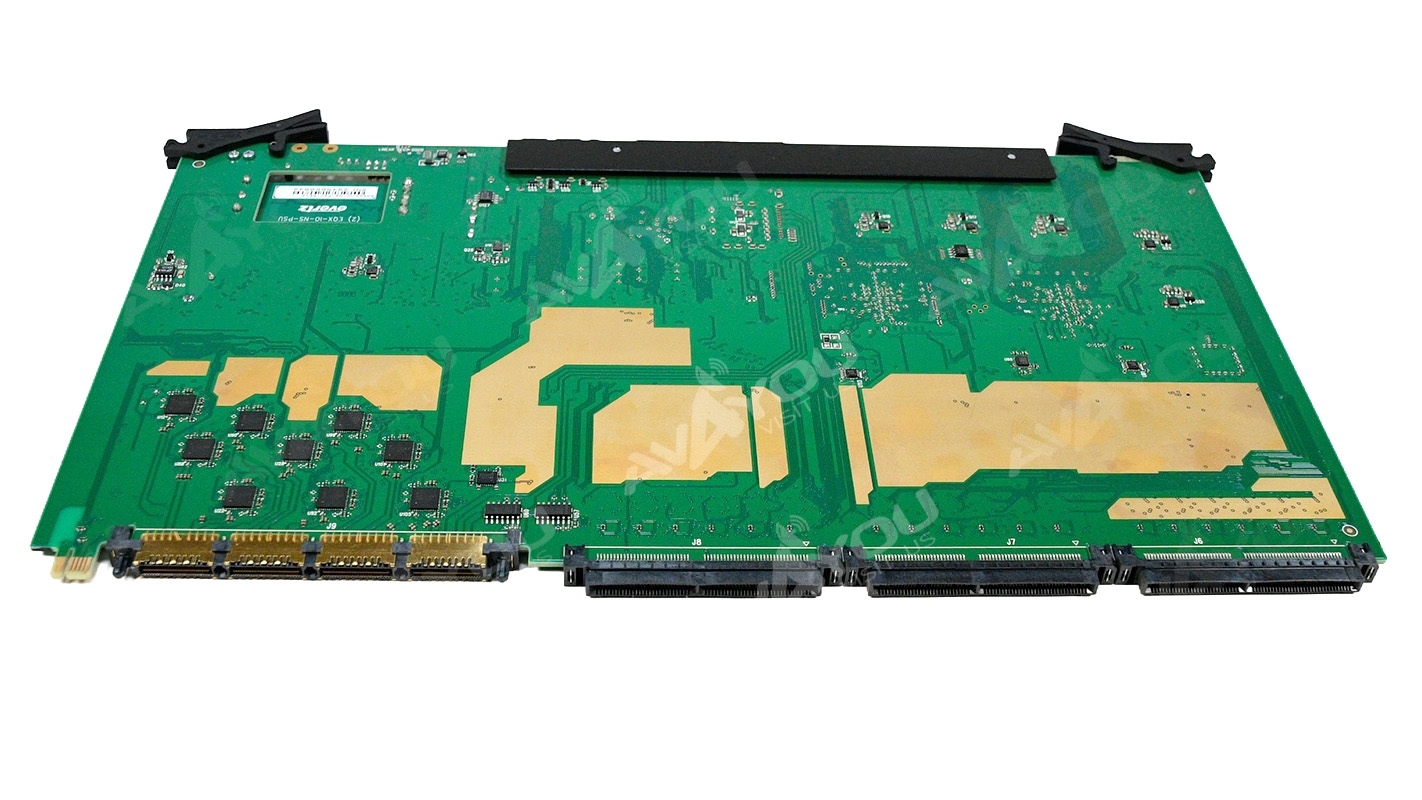

For sale is ONE (1) EQX output board. Green version, low voltage. Backplane may be included per two board taken (BNC version) - Please inquire within. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped. If you are looking for any other Evertz modular cards - we probably have them. Thousands of cards available. Check out our inventory.
The EQX output module comprises of 18 reclocked output channels fed from the crosspoint modules. On each output the reclocking facility can be switched On/Off or switched into ASI bypass mode as required. Like the input module, each of the output modules support eighteen (18) digital video outputs using industry standard BNC connectors mounted on the passive I/O RP.
The EQX router can be loaded with a maximum of 32 input modules providing square and non-square matrix configurations from as small as 18 inputs through to 576 inputs, in increments of 18. The input module manages digital video with or without embedded audio signals from 3Mb/s through to 3Gb/s.
The output module manages digital video and embedded audio signals from 3Mb/s through to 3Gb/s. The following are supported: SDI (625 and/or 525), HDSDI (720p, 1080i, 1080p etc), DVB-ASI, SMPTE310. All of the output modules are accessed from the front of the frame and can be replaced while the EQX router is still operational should one of the modules fail. The output modules are air cooled by the fans mounted in the upper and lower half of the frame.
