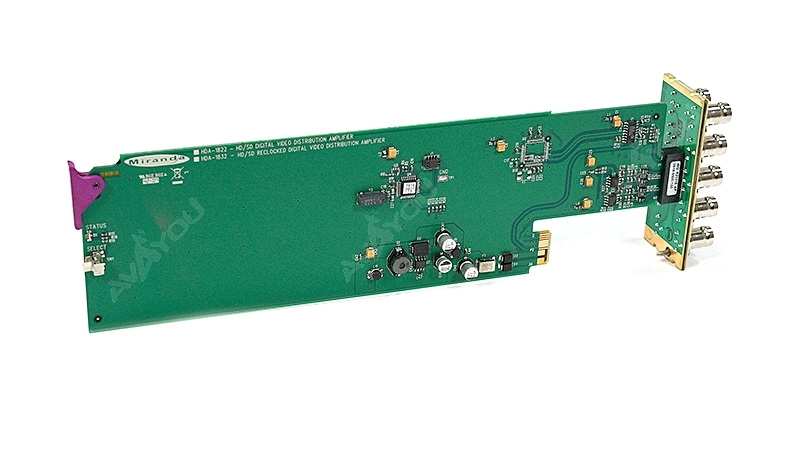

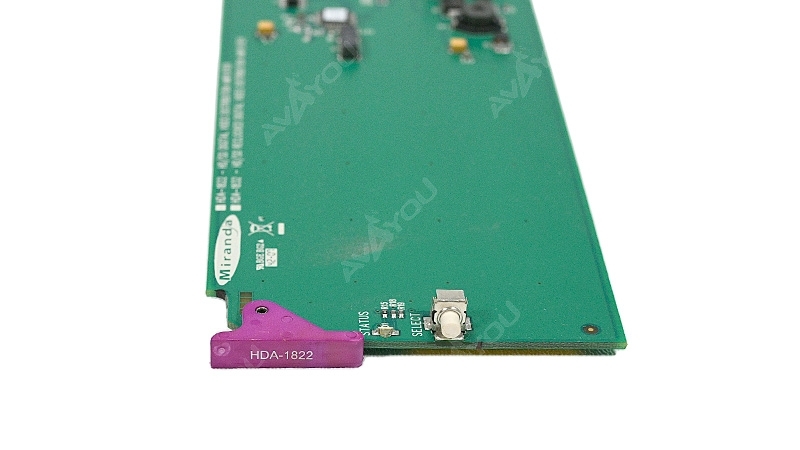

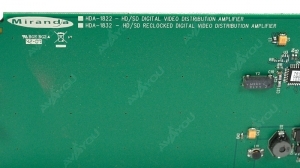

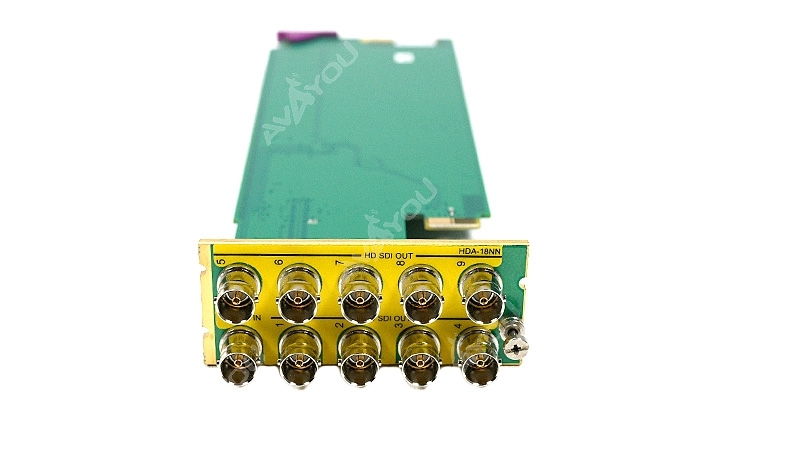

For sale is ONE (1) used HDA-1822 SD/HD Digital Video DA in very good condition. 1x9 configuration on DRP backplane. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped. If you are looking for any other Miranda modular cards - we probably have them. Thousands of cards available. Check out our inventory.
The HDA-1822 is a high-definition serial digital video distribution amplifier. The HDA-1822 has one input, and 9 outputs, with automatic equalization for up to 110 meters of cable (Belden 1694a) at 1.48 Gbps. The amplifier offers signal presence detection and remote reporting. While primarily designed for distribution of HD serial digital signals (SMPTE 292M), the HDA1822 provides convenient support for SD serial digital signals (SMPTE 259M) as well. This multirate feature makes the HDA-1822 ideal for applications where HD and SD signals may coexist. The HDA-1822 is designed for use in the DENSITÉ frame.
