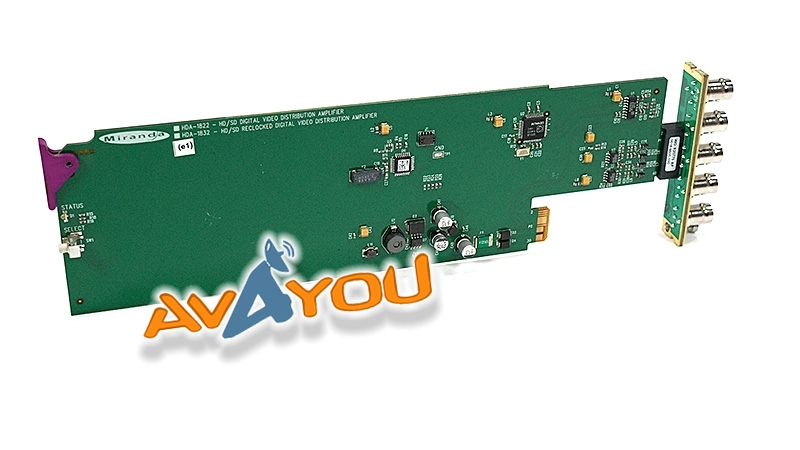

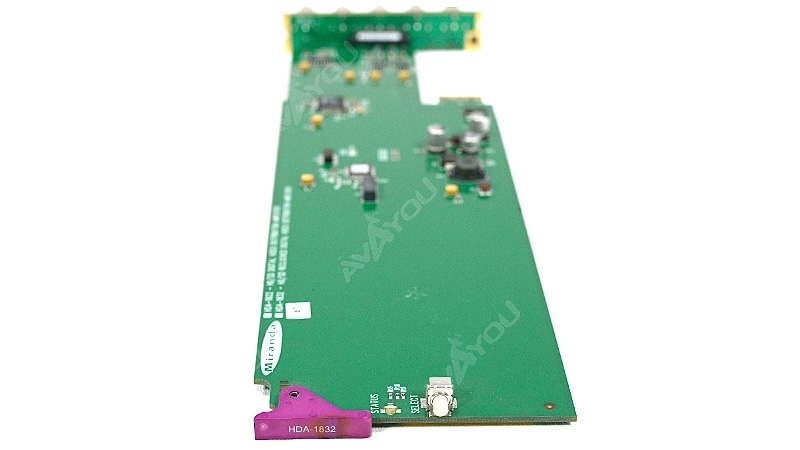

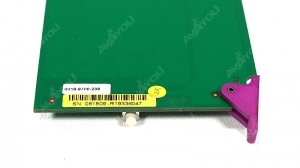

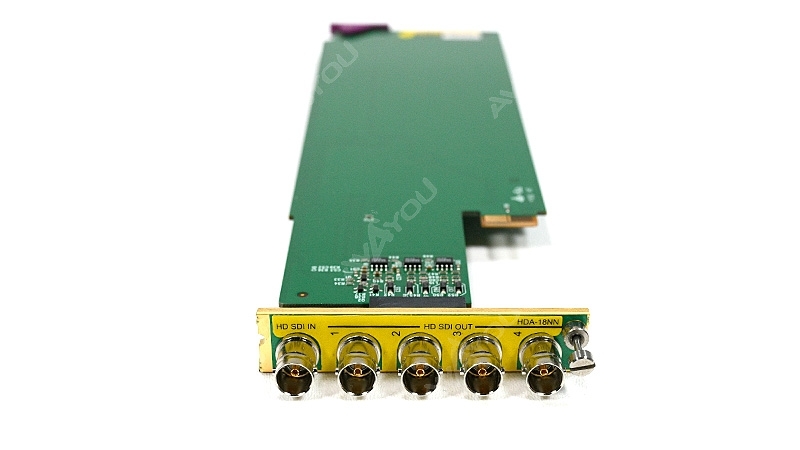

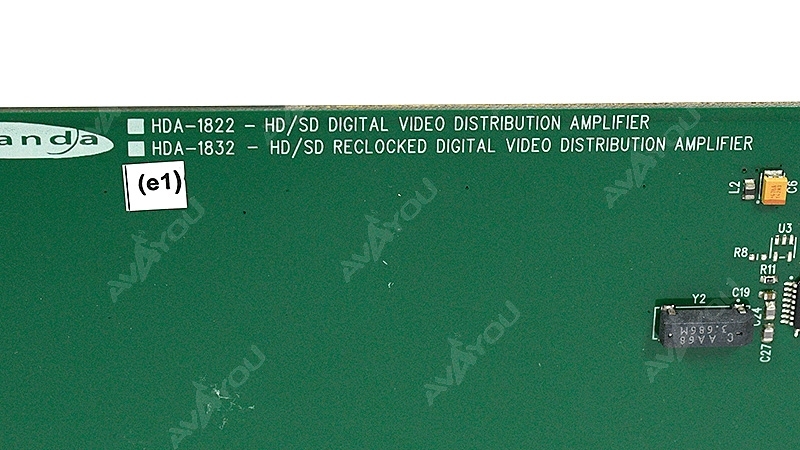

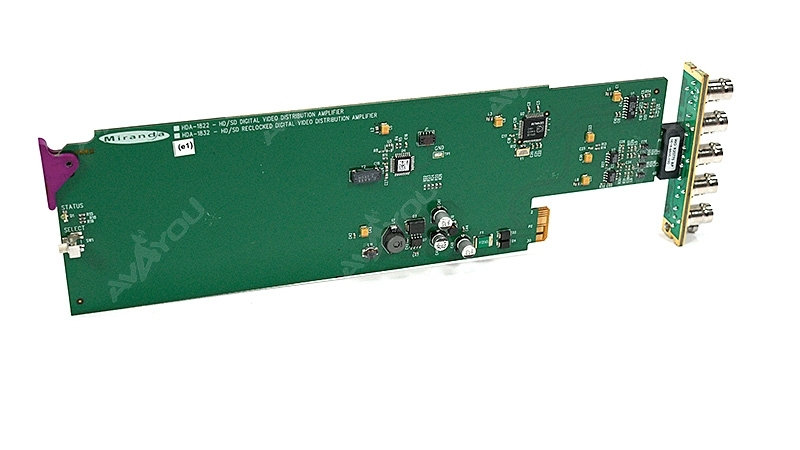

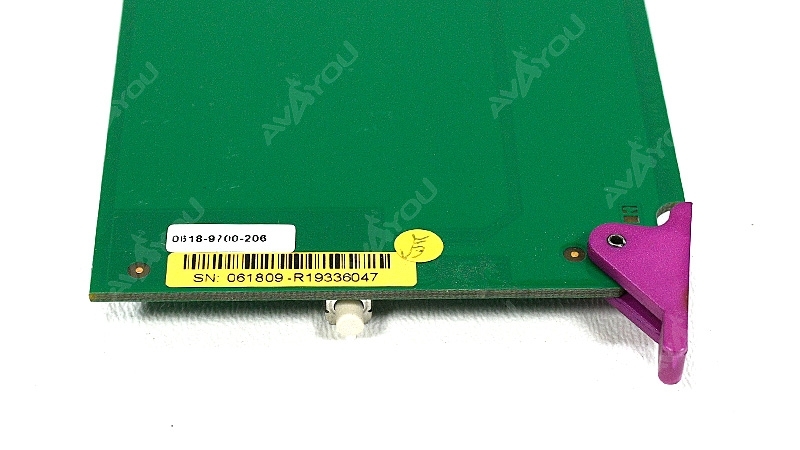

For sale is ONE (1) used HDA-1832 DA card for Densite Frame. Single +SRP backplane is included for 1x4 operation. Good to very good condition. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped
The HDA-1832 is a reclocked high definition serial digital video distribution amplifier. The HDA-1832 has one input, and 4 or 9 outputs, with automatic equalization for up to 110 meters of cable (Belden 1694a) at 1.48 Gbps. The amplifier offers signal presence detection and remote reporting, and includes reclocking, providing an additional level of signal integrity in long cable length applications. While primarily designed for distribution of HD serial digital signals (SMPTE 292M), the HDA-1832automatically detects and re-clocks non-HD signals. This multi-rate feature makes the HDA-1832 ideal for applications where HD and SD signals may coexist. The HDA-1832 is designed for use in the DENSITÉ frame.
